• Concrete

• Single Ply Membrane

• Bitumen Membrane

• Asphalt – Sanded

• Asphalt – Stone Chippings

• Steel Profile

Installation

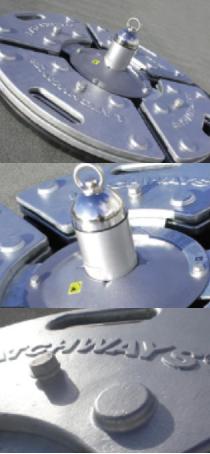

The Freestanding post is supplied in component part form and requires assembly before the device can be put into service. The interlocking segments are arranged in a circular form, ensuring that the post is omni directional. Each segment has an integral carry handle and is a maximum weight of 25kg.

Only Latchways trained personnel are permitted to install the Freestanding Constant Force® post and ManSafe® componentry. Following installation, Pinnacle Safety will test, certify and tag the system prior to use.

Specification

The Freestanding Constant Force® post is used on its own as a single point anchor conforming to BS EN 795 Class E and can also be used as part of a Latchways ManSafe® horizontal cable system, which has been independently tested.

The post is used on nominally flat roofs up to a maximum pitch of 5˚ where it is not practical or possible to install traditional Constant Force® posts or rigid anchor posts to the roof or supporting structure.

The posts can be sited where access is required without the need to puncture the roof membrane, thus maintaining roof integrity and not affecting the roof’s compliance with Part L of the Building Regulations.

The post has been tested and approved for use on concrete, single ply membrane, bitumen membrane, asphalt-sanded, asphalt-stone chipped roof profiles. Most steel profile type roofs are suitable, however please seek advice from our technical department prior to installation.

*See The science of Constant Force®.

Constant Force® is a registered trademark of Latchways plc.
